“PXI”- Line
SPECIFICATION
HARDWARE CONFIGURATION
32-Bit PCI or 64-Bit PCIE Architecture with multiple Extension Slots
64-Bit PXIE/cPCIE Architecture with 4, 8 or 18 Slots (3U & 6U)
VARIOUS Processors/Controller-Boards available (INTEL ATOM/XEON/i5/i7) with up to 24 Cores
Various Display-SIzes (12”, 15”, 17”) and Various Options (Touch-Display, NVG-Compatibility, SUNLIGHT-READABILITY) Available
VARIOUS HDD/SSD OPTIONS with ALMOST unlimited CAPACITY (including ENcryption, QuickFormat & Physical Destruction)
I/O: GBIT LAN, SERIAL (RS232, RS22/485, USB), THUNDERbolt, Various Databus Analyzer Options (ARINC-429, MIL-STD1553, CANbus, etc.)
Integration of customer-specific I/O Boards/Hardware possible
POWER-SUPPLY / UPS Option
90-260VAC
9-36VDC (Optional: 3-phase 115VAC/400Hz)
5-10MIN UPS OPTION
HOUSING
robust & lightweight ALUMINUM HOUSING
various Surface Treatments available (Powder-coating, anodization or surtec-650)
FULLY HErmetically sealed Housings with conductive cooling & internal heating options available
CONNECTORS
MILITARY GRADE MIL-38999 Connectors
Other INDUSTRY GRADE connectors available optionally
DIMENSIONS & WEIGHT
Dimensions Depend on Configuration, Power-Supply & Battery
Weight depends on Configuration, POwer-supply & Battery
Environmental Qualification*
Temperature (MIL-STD810H, Method 501.7 & 502.7):
-30°C to +55°C (operating; units without display)
-20°C to +55°C (operating; units with display)
-30°C to +70°C (Storage)
HUMIDITY (MIL-STD810h, Method 507.7)
5% to 95% without CONDENSING
RAIN/WATER-Ingress (IP CODE, IEC/EN 60529)
up to IP65
VIBRATION (MIL-STD810H, METHOD 514.8)
SHOCK (MIL-STD810H, Method 516.8)
EMC/EMI (MIL-STD461G)
CE & RoHS QUALIFIED
*) UNIt IS “BUILT TO MEET” and can be officially qualified optionally. As any single Change to a qualified system results into a loss of an obtained qualification, a custoized System needs to be officially tested & qualified anyways…

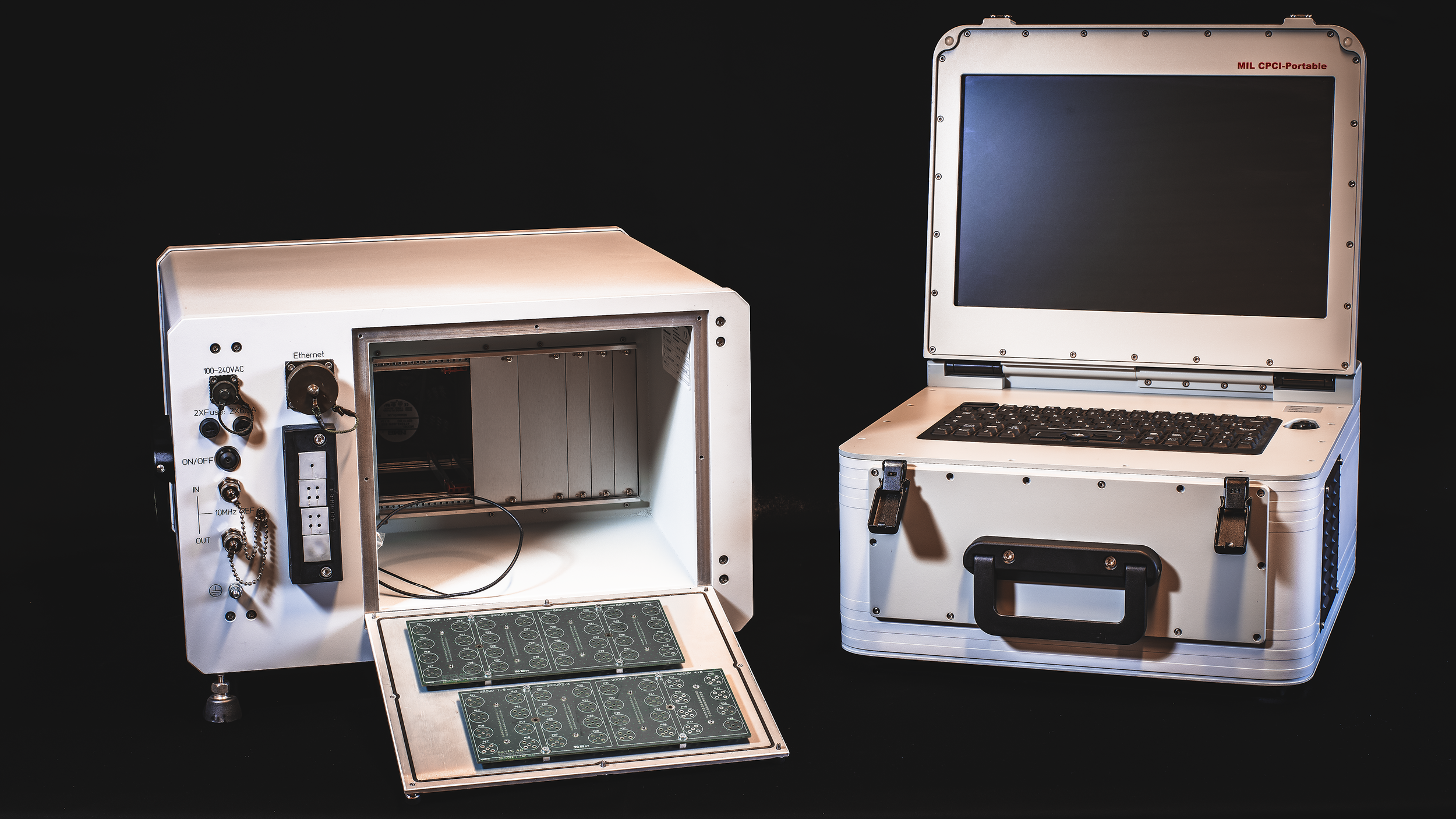

ALR’s “PXI” System (Overview)
“PXI” with a 4-Slot 6U PXI-Backplane
“PXI” System with an 8-Slot 3U PXI-Backplane
“PXI” configured as 7-Slot Clamshell PCI System with IP65 Protection
Backplane of 7-Slot Clamshell PCI System
